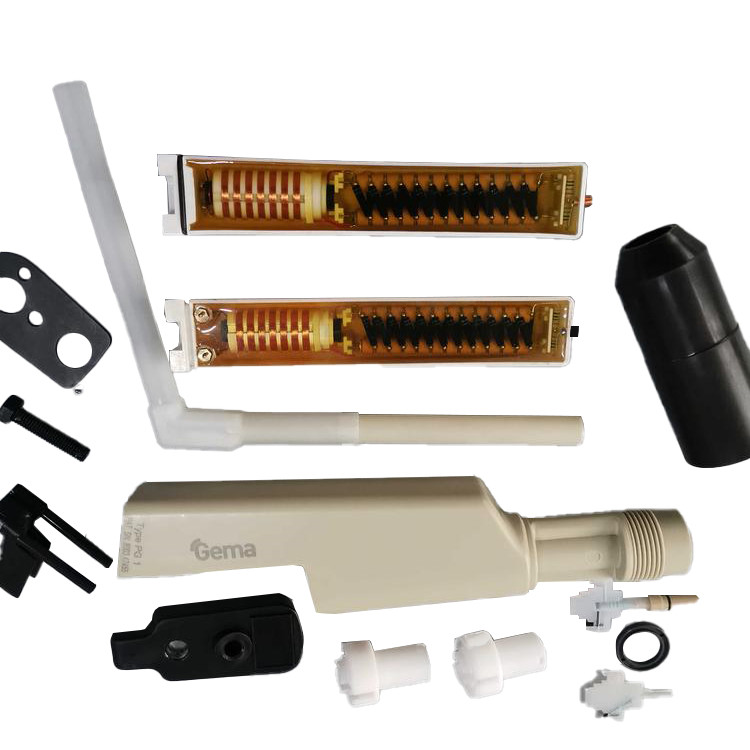

338249 338257 Gema PG1 Powder Gun Hv Cascade Negative or Positive Polarity
Introduction
The voltage generator module (Control module) supplies high-frequency low-voltage.
This voltage is conducted by the gun cable and the gun connector in the grip to the high-voltage cascade .
In the cascade this low voltage is stepped up. This primary high-voltage is subse quently rectified and multiplied in several stages in the cascade until the required high voltage is attained.
The high-voltage is then fed from the spray nozzle to the electrode.
When the high-voltage is adjusted on the control module, the intensity of the LED also changes. The user has the assurance that high-voltage is present and can control this function.
Application
Gema PG1 Powder Gun
Quick Details
| Name | Hv cascade | Type | PG1 Manual |
| Voltage | 10V | Polarity | Negative (Option - positive) |
| Application | Gema PG1 Powder Gun | Rated input voltage | 10 V eff. |
| Frequency | 17 kHz | Rated output voltage | 98 kV |
| Maximum output current | 100 µA | Warranty | 1 year |
Advantages and selling points
1. Original function
2. High quality with high static
3. Original gun compatible
4. Regular stock
Package
Paper box package
